Electric Guitar
Building: Intermediate
Program: Expert

Building Instructions


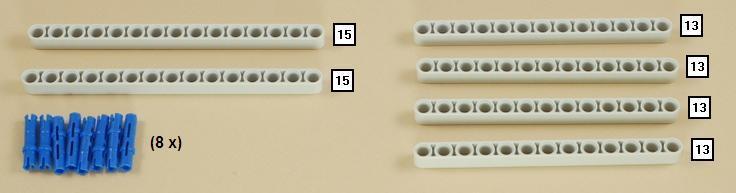

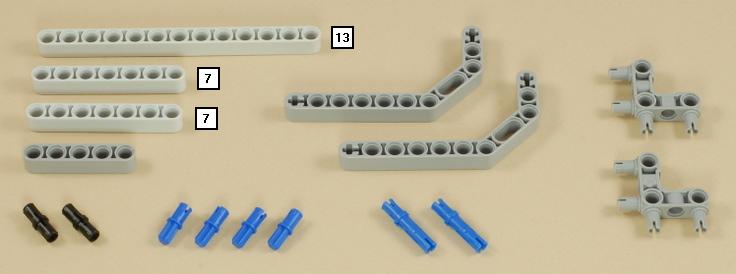

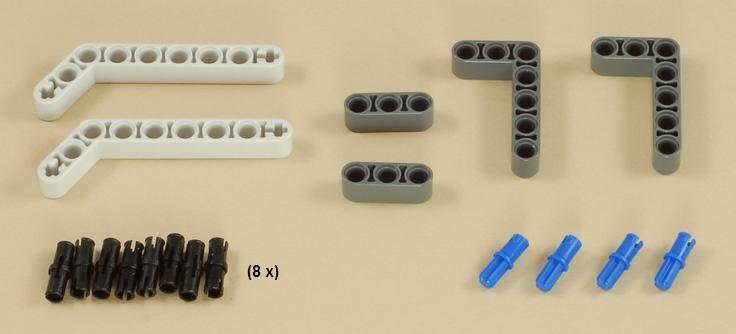

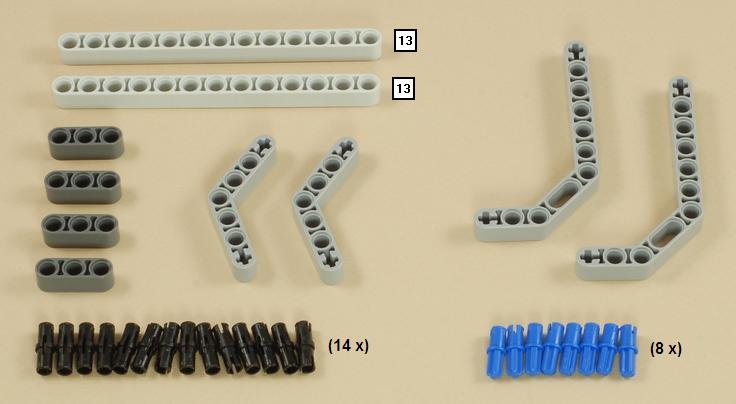

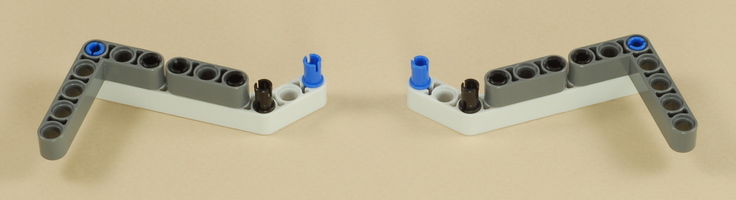

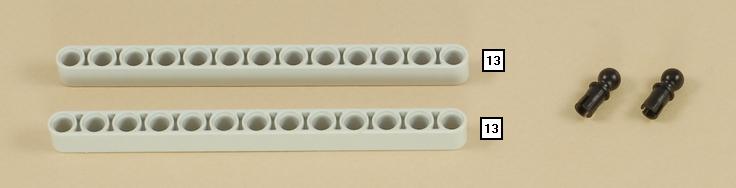

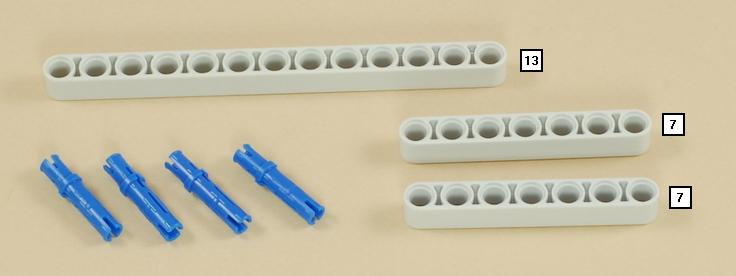

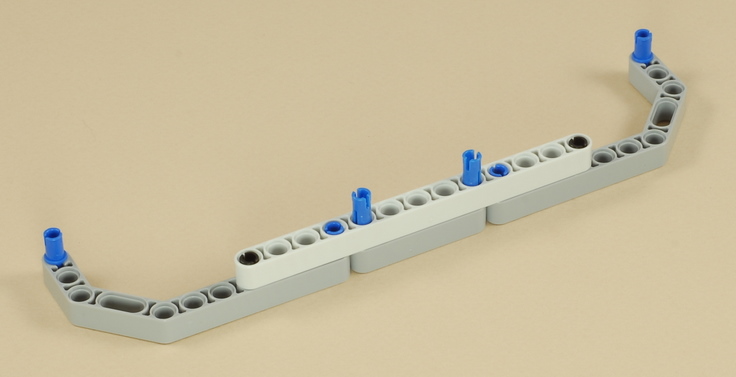

1


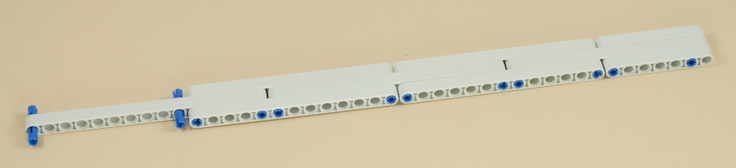

2


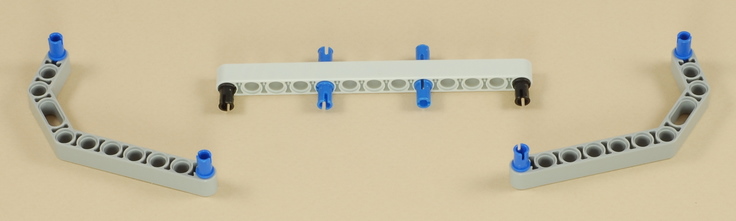

3


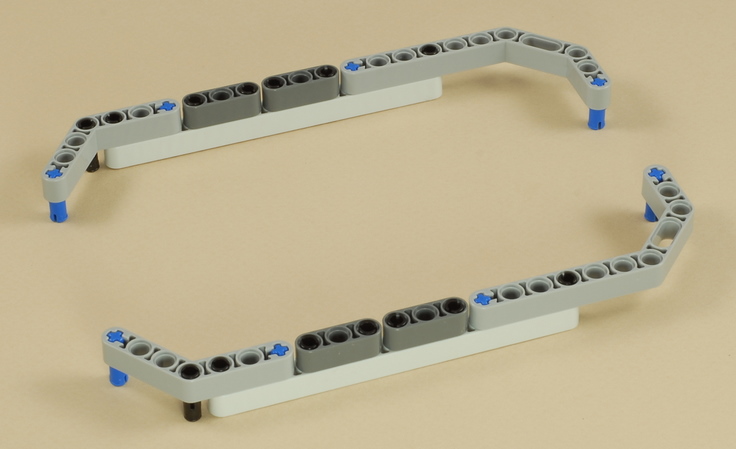

4


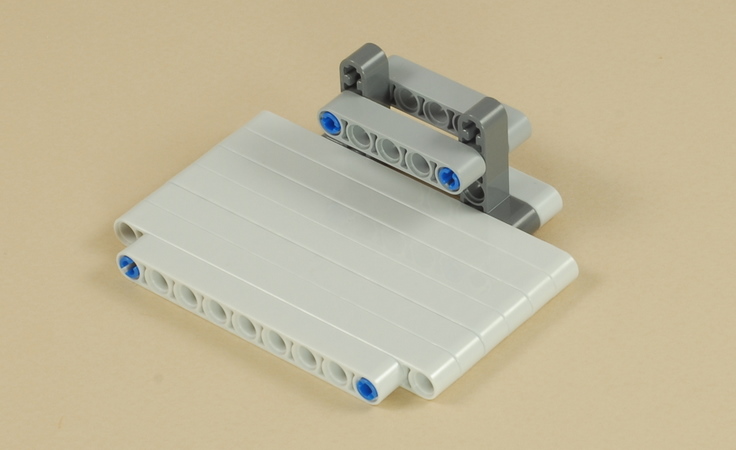

5


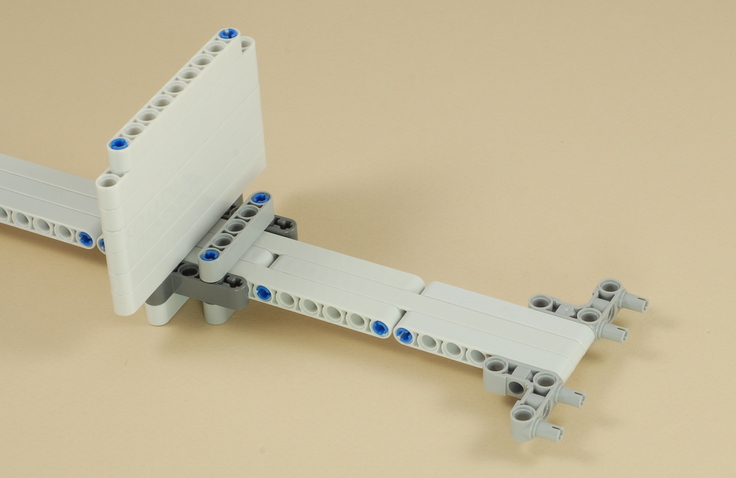

6

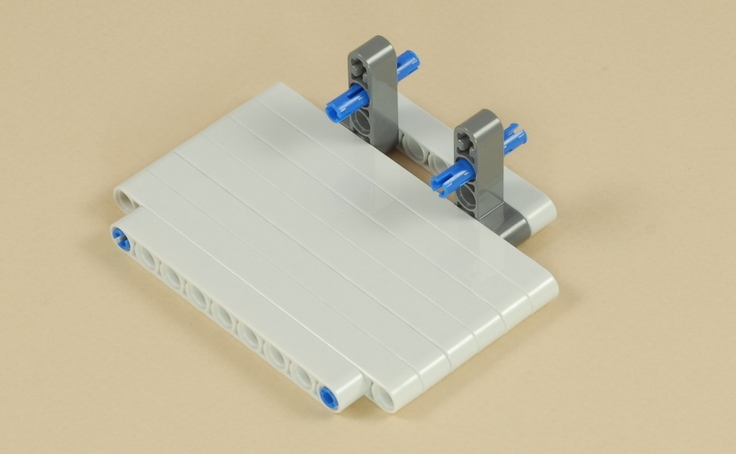

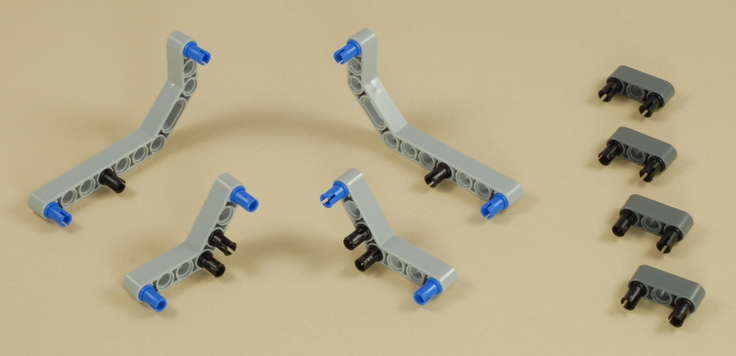

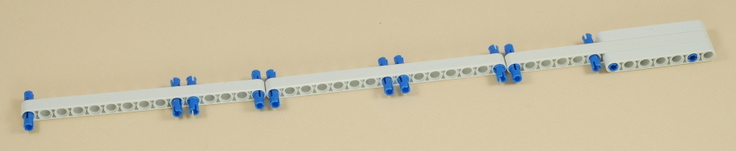

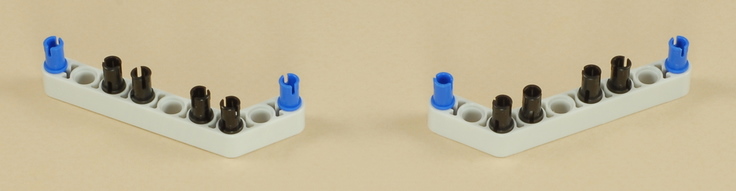

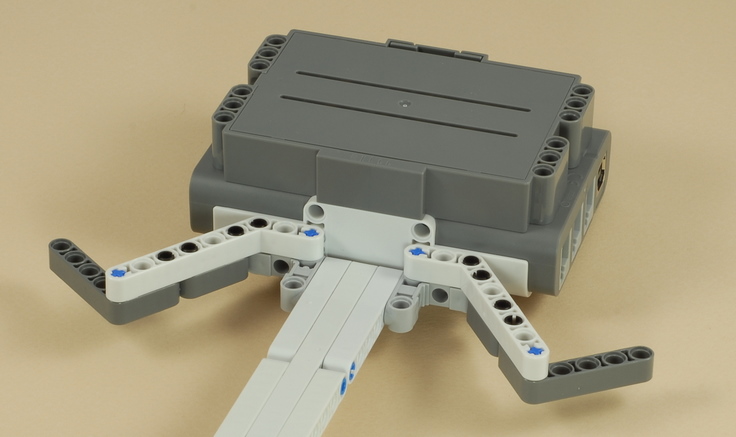

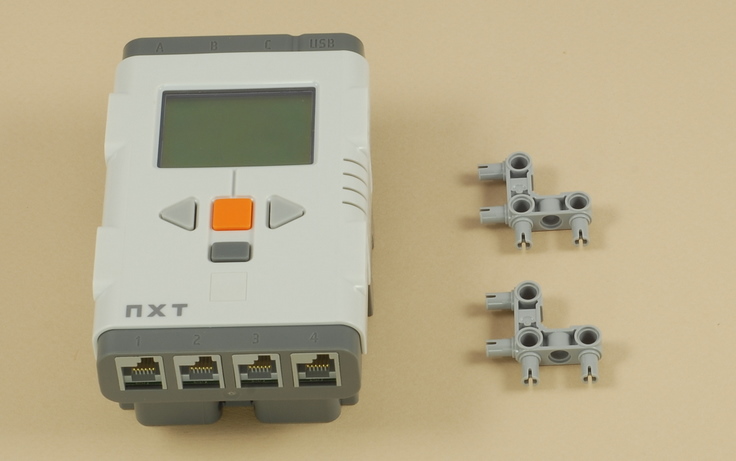

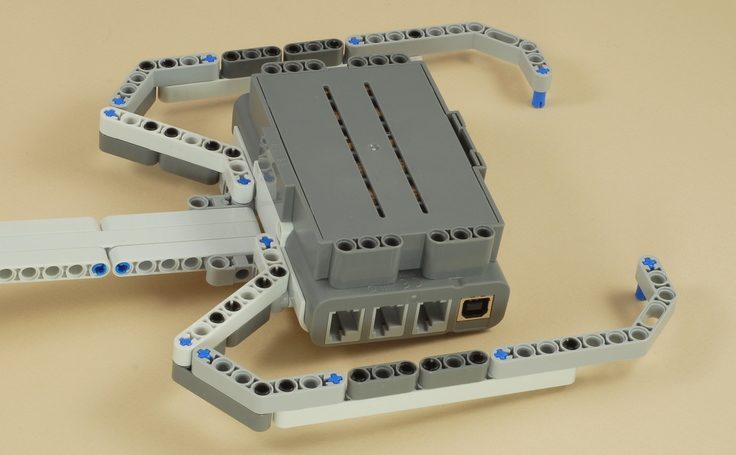

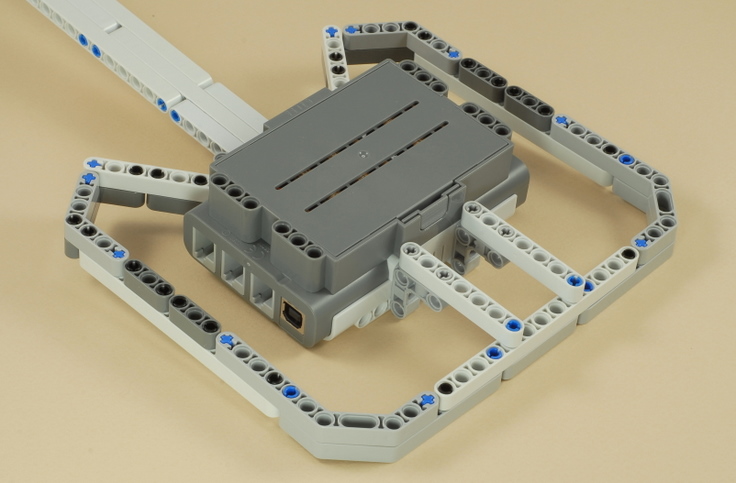

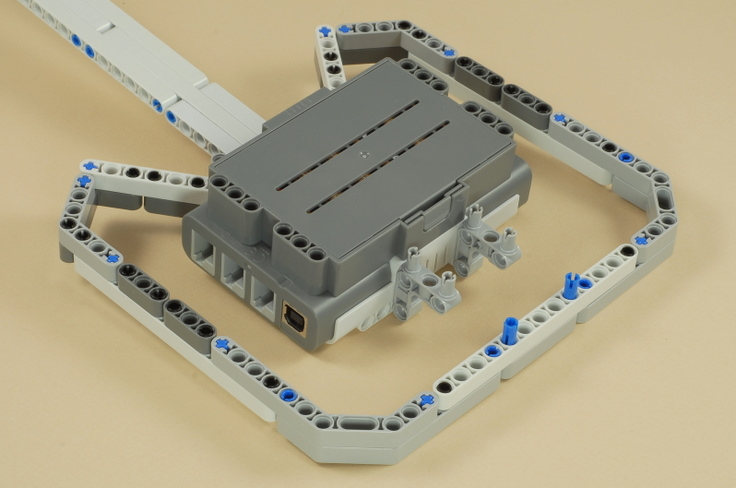

The NXT can be used with either AA batteries or the rechargeable battery pack.


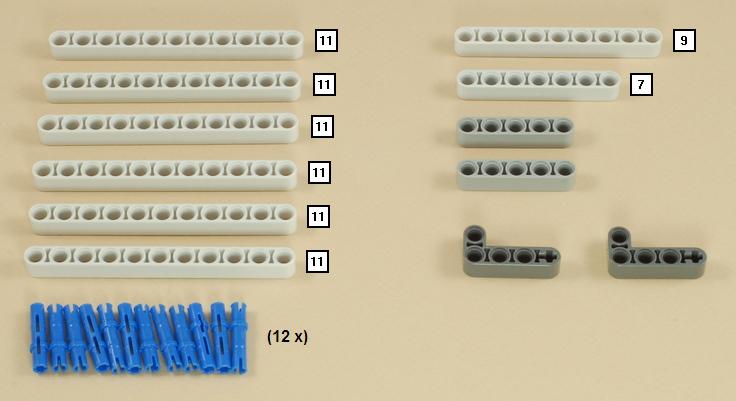

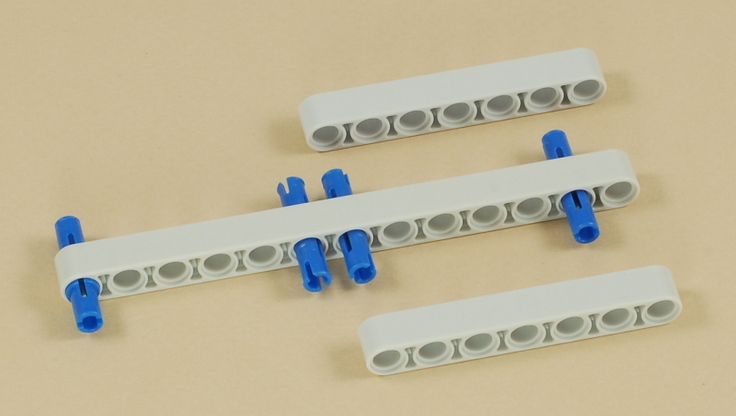

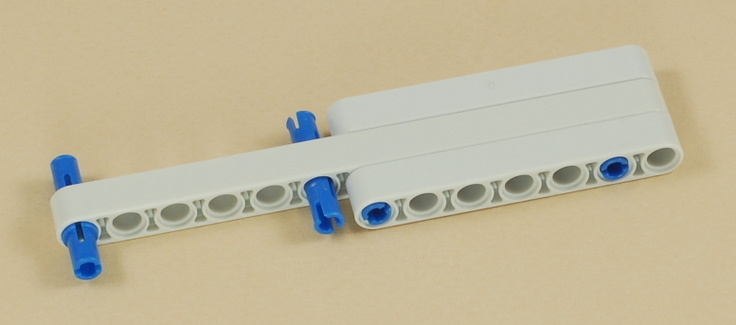

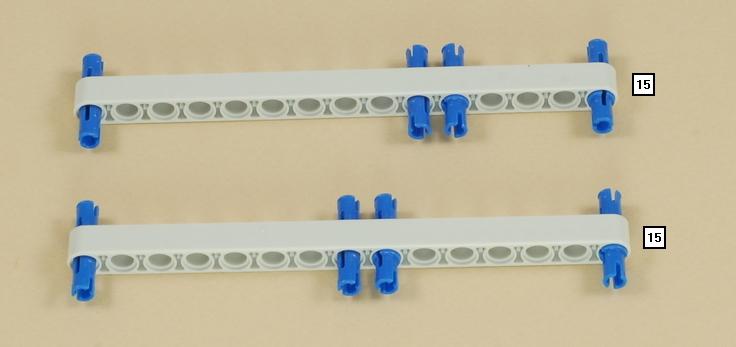

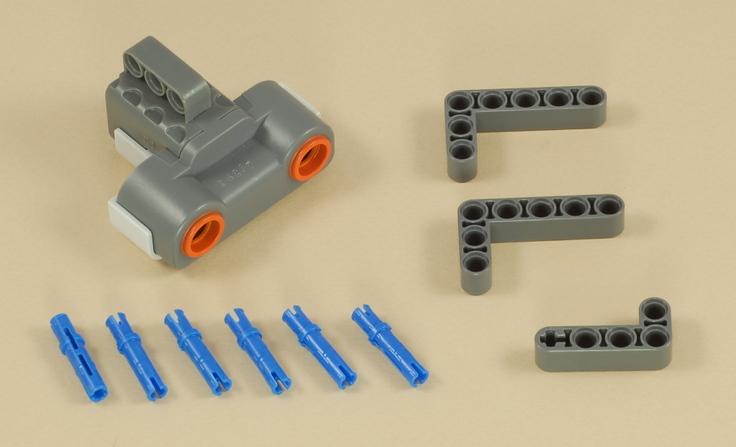

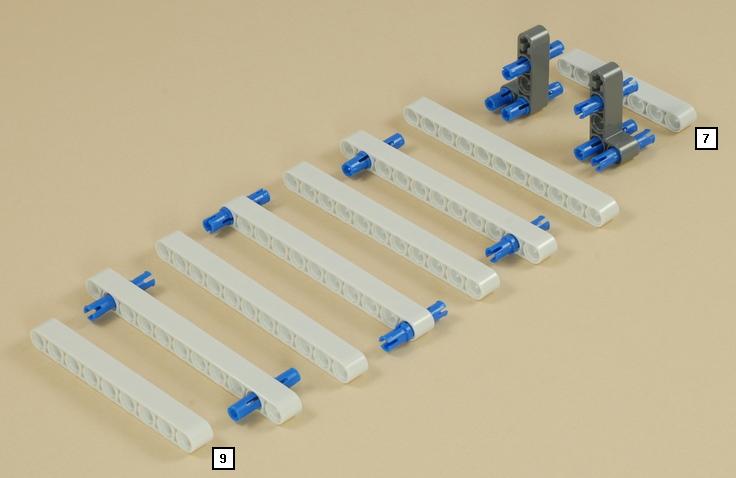

7


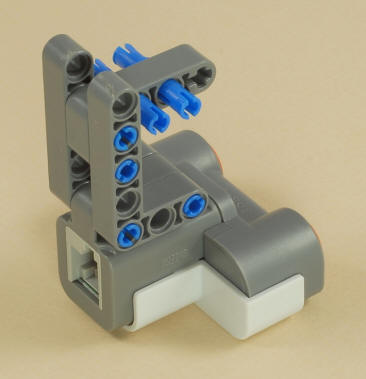

8


9


10

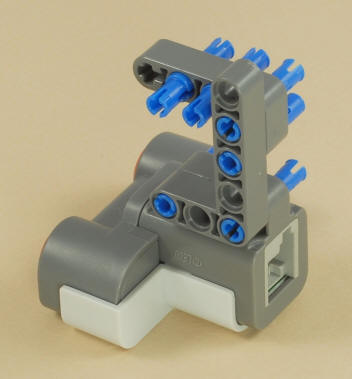

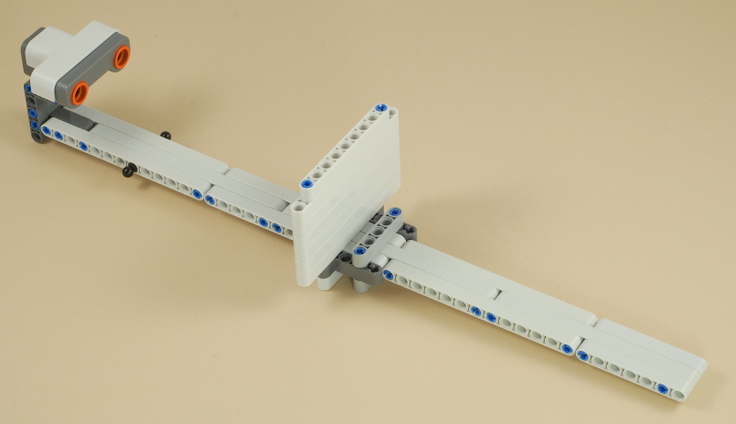

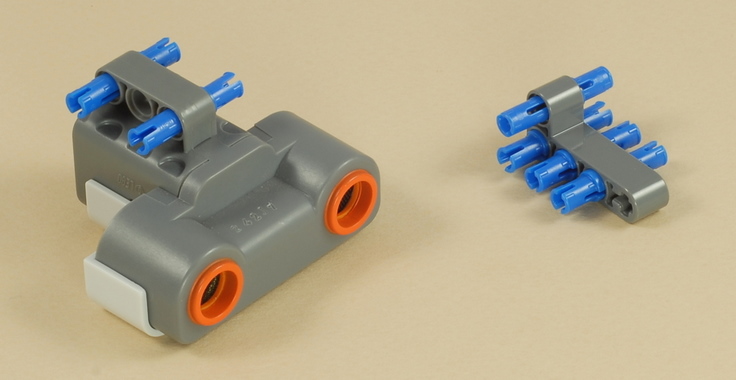

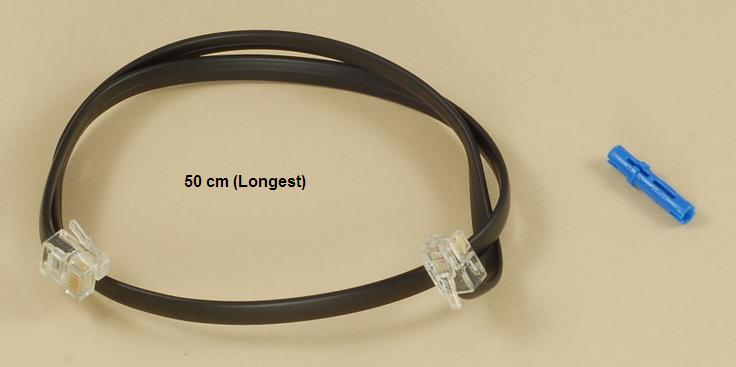

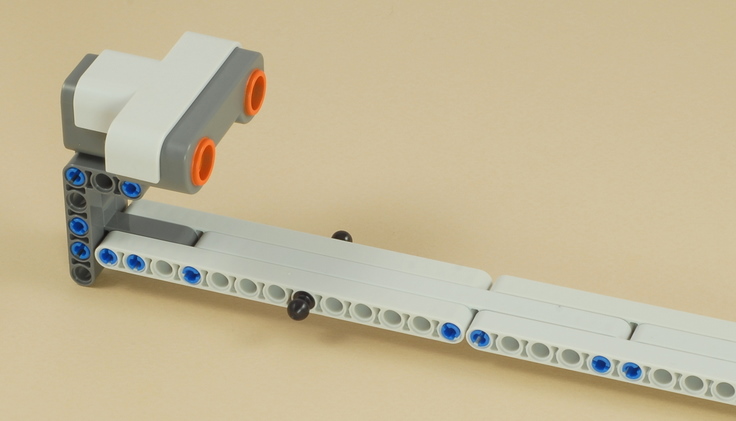

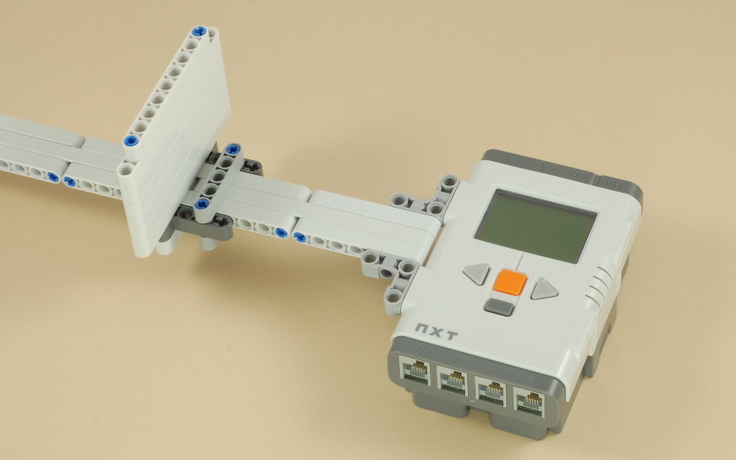

First connect the wire to the ultrasonic sensor as shown below.

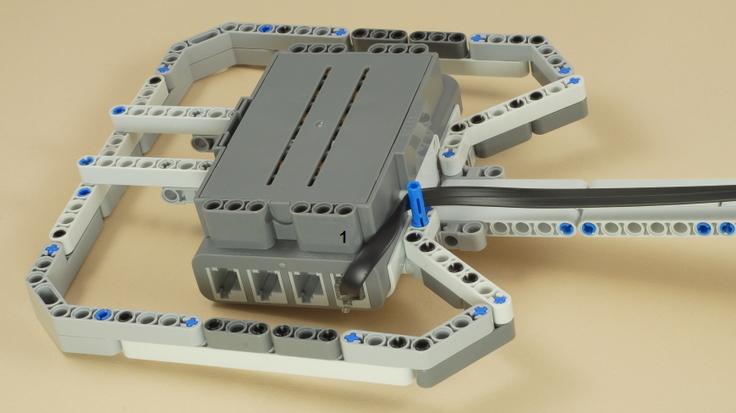

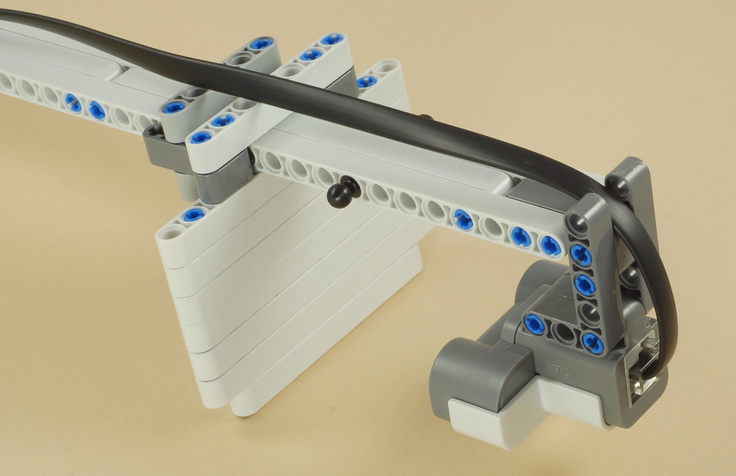

Then connect the wire to port 1 on the NXT, then place the long blue peg and route the wire around it as shown below (this will be a tight fit).


Electric Guitar Programming

There are two programs to choose from for your electric guitar.

  • The program GuitarTones uses the NXT’s built-in tone generator to make musical notes.

  • The "GuitarChords" program will play some cool recorded guitar “power chord” sounds to make your electric guitar sound more realistic.  To use this program, you can download the "GuitarChords.rbtx" NXT "Pack-and-Go" package inside this zip file and save it to your computer (don't open it directly from the web), then open it in the NXT 2.0 software.  This will load the GuitarChords program and automatically install the eight sound files needed.  Alternately, you can download and install the sounds and program file individually as follows:
  1. Locate and open the NXT Sounds folder on your computer. On most computers, this is:

Windows: C:\Program Files\LEGO Software\LEGO MINDSTORMS NXT\engine\Sounds
Mac:
Applications > LEGO MINDSTORMS NXT > engine > Sounds

To locate your Sounds folder on Windows, start by finding out where your NXT software is installed by right-clicking on the icon you use to launch the NXT software, picking Properties, and then pressing Open File Location (or look at the Target path), then open engine\Sounds from there.

  1. Open the package of Guitar Chord Sounds (a .zip file) and open it to locate the eight guitar sound (.rso) files.  If your computer cannot open .zip files, you can download the eight sound files individually from here.

  2. Copy (select and drag) all eight of the guitar chord sound files (.rso) to the NXT Sounds folder on your computer.

  3. Download the GuitarChords program file.

In addition to needing the guitar sound files, the GuitarChords program has a couple of other restrictions that you should know about:

  • The recorded guitar chord sounds take a lot of memory on the NXT, so you may need to delete other programs that you have downloaded to your NXT to make room. And when you are done using the guitar and need more memory for other programs, you should delete the sound files from the NXT.

  • Due to memory constraints, the guitar chords will only play for about ½ second for each press, so you can‘t hold long notes. Use it like a “rhythm guitar” and keep strumming!




How to Play Your Electric Guitar

Hold the sliding plate with your left hand with your hand on the side away from the ultrasonic sensor.  Slide the plate up and down the guitar's neck to select the note to play, then press the orange button on the NXT with your right thumb to play the note. The NXT’s display will show the name of the note or chord that will be played as the sliding plate moves.



The Electric Guitar's Notes

The programs for the electric guitar play a series of notes or chords known as the “blues scale”.
These notes are often used in blues and heavy metal rock music. The notes in this scale are:

A, C, D, D#, E, G, G#, A     (The # means “sharp”, so D# is “D sharp”)

On a piano keyboard, these notes are:

Using these notes, it is easy to improvise or "play around" even if you don't know anything about music.



Challenges
  • Design your own Guitar body that has a shape you like.

  • Can you arrange the pegs in the neck of the guitar to visually mark the different note locations?

  • Can you figure out the notes to some tunes you know? For example, the main riff of
    the rock song “Smoke on the Water” by the band Deep Purple would be:

A C D A C D# D
  • The NXT is not very loud, especially when playing recorded sounds as in the Guitar Chords program. Can you figure out a way to use the microphone and sound system on your computer as an amplifier for your guitar?

  • Try the upgraded version of this project, the Guitar Challenge Game!
